Hydraulische Servoventile (Lochbild NG 25) von Schneider Servihydraulics

Mounting pattern NG 25

The servovalve range embraces single, two and three-stage valves in a flow rate range from 0.4 to 250 l/min. Further flow ranges on request.

Besides the standard range, application-related valve series are available, for example:

  • special chracteristics
  • low-leakage pistons
  • two return flanges
  • highly dynamic valves
HVM NG 25

Applications areas

  • Press brakes
  • Testing machinery

CETOP 08 / NG 25

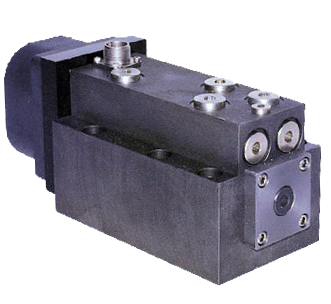

HVM 250
DescriptionTwo stage servo valve
Rated flow Δp70bar80 - 300 l/min
Operating pressure10 - 315 bar
Rated current± 300 mA
Step response 0 - 90%10 ms
Resolution without dither< 0,2%
